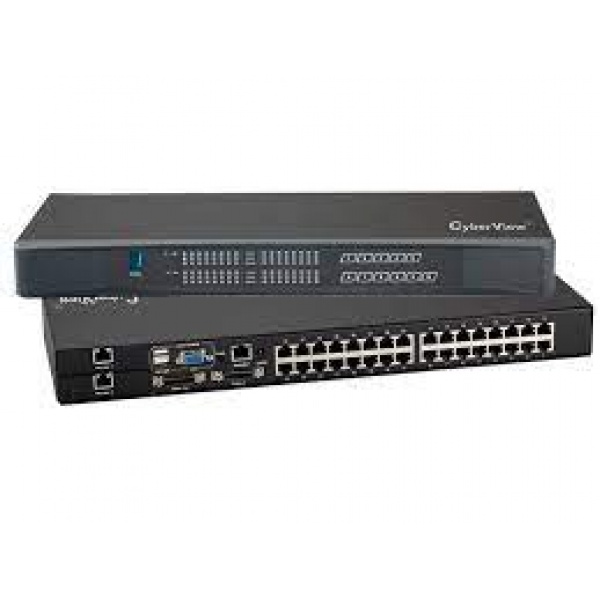

Austin Hughes Cyberview MUIP - 3213/ 32-port Matrix Cat6 IP KVM Switch

Mã sản phẩm: MUIP-3213

Tình trạng: Còn hàng

Liên hệ

- Xuất xứ: China

- Bảo hành: 24 tháng

Chính sách bán hàng

Bảo hành tại nơi sử dụng

Sửa chữa chi phí rẻ nhất

Miễn phí giao hàng

Cam kết hàng chính hãng 100%

The MU-IP3213 is a 32 port Matrix Multi-User Cat6 IP KVM Switch. This matrix IP KVM switch features 3 consoles, 1 x local, 1 x remote and 1 x IP.

Secure IP remote user access across the internet
Efficient system management with simultaneous multi-user access
Capable of connecting 32 servers per device in 1U
Support HDMI, DisplayPort, DVI, VGA-USB & VGA-PS/2 server interface
Up to 130 feet (40 meters) between your server & KVM switch
Enhanced Cat6 cable management with remote access over 985ft (300m)
Provide a diversity of consoles to access servers independently and simultaneously
Use of the RJ45 Cat6 interface allows for a higher number of ports in smaller density
Greater distances between your switch and servers allow enhanced data center rack layouts
Multi-lingual on screen display menu
Advanced user profiles and configurable OSD hot key combinations

Mechanical
Height	1.73 in. (44 mm.)
Width	17.6 in. (448 mm.)
Depth	7.1 in. (180 mm.)
Weight	9 lbs. (4 kg.)
Environmental
Operating Temperature	0 to 50°C / -5 to 60°C
Relative Humidity	90%, non-condensing
Shock	50G peak acceleration (11 ms, half-sine wave)
Vibration	58~100Hz / 0.98G (11 ms/cycle)
Power	100~240VAC, 50 / 60Hz 0.5A via AC / DC cord
KVM Port	32 x RJ45 connector
KVM Dongle	DVI-D / VGA connector dongle up to 132 ft. (40 meters) Cat6 / Cat5 cable
Simultaneous Console Access
Local	1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS
Remote (1 or 2)	1 x RJ45, up to 1000ft (300 meters) Cat6 / Cat5 cable
IP Access (1 or 2)	1 x RJ45 Ethernet, 1 x DB-9 serial & 1 x USB port
IP Security	SSL v3, RSA, AES, CSR, http & https internet access 15-user login (1 x active user)
Remote Receiver (1, 2 or 3)	1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS, 1 x KVM port for connecting to extra PC
Expansion	Support mixed DB-15 or RJ45 Matrix KVM, up to 256 servers
Compatibility	Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
Regulatory Approval	FCC, CE

Function	Hot Key Sequence
Calling OSD Menu	[Scr Lock] [Scr Lock] [Space Bar] Right Mouse + [Esc]
Previous Port	[Scr Lock] [Scr Lock] [Up]
Next Port	[Scr Lock] [Scr Lock] [Down]
Previous/Next Bank	[Scr Lock] [Scr Lock] + [PgUp/PgDn]
Switch to Specific Port	[Scr Lock] [Scr Lock] + Bank # + Port #
Buzzer On/Off	[Scr Lock] [Scr Lock] [B]
Logout (Password Security Must Be On)	[Scr Lock] [Scr Lock] [P]
Advanced HotKeys (For Supervisor Login Only)
AutoScan Mode	[Scr Lock] [Scr Lock] [S]
Reset Factory Defualts	[Scr Lock] [Scr Lock] [R]
Disable/Enable Password Security	[Scr Lock] [Scr Lock] [U]
Enable/Disable Screen Saving	[Scr Lock] [Scr Lock] [L]
Remote Console HotKeys
Toggle Remote/Local Port	[Scr Lock] [Scr Lock] [C]
Buzzer On/Off	[Scr Lock] [Scr Lock] [Q]
AutoScan Mode	[Scr Lock] [Scr Lock] [S]
Auto Adjust Video Signal	[Scr Lock] [Scr Lock] [A]
