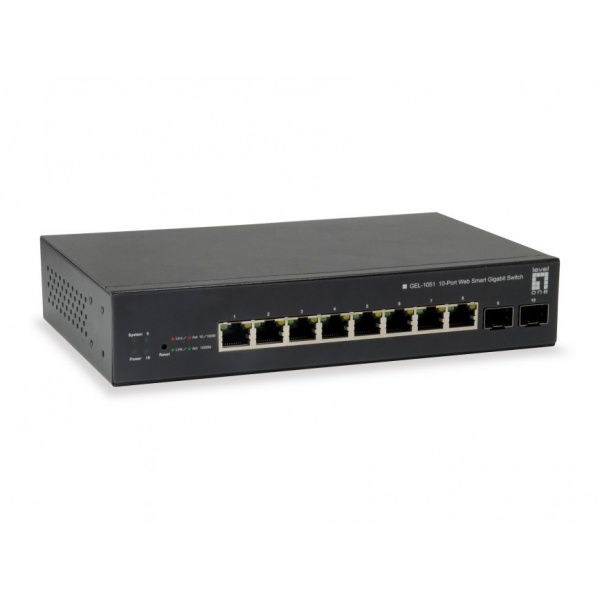

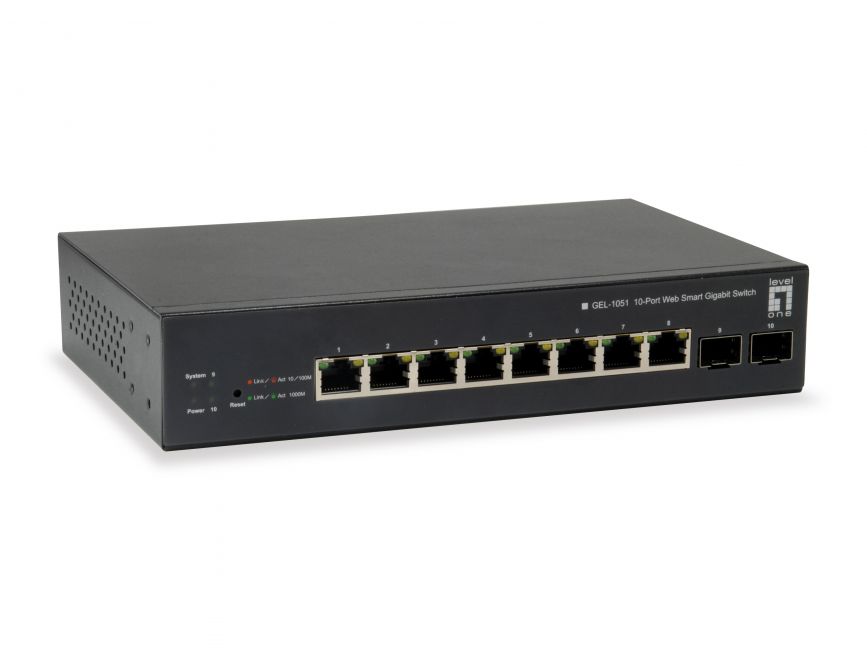

GEL-1051, 10-PORT WEB SMART GIGABIT SWITCH, 2 X GIGABIT SFP

Hãng: Level One

Mã sản phẩm: GEL-1051

Tình trạng: Còn hàng

Liên hệ

0978470323

- Xuất xứ: China

- Bảo hành: 24 tháng

Cho vào giỏ

Chính sách bán hàng

Bảo hành tại nơi sử dụng

Sửa chữa chi phí rẻ nhất

Miễn phí giao hàng

Cam kết hàng chính hãng 100%

- 8 cổng Gigabit Ethernet và 2 khe cắm Gigabit SFP
- IEEE 802.1d / w / s Spanning Tree Protocol (STP) và phản chiếu cổng
- Hỗ trợ VLAN dựa trên cổng, Gắn thẻ VLAN IEEE 802.1Q
- IEEE 802.3ad LACP để tổng hợp cổng tự động
- MLD, Telnet, SNMP V1, V2c & V3, RMON, Trình duyệt web và Quản lý TFTP

GEL-1051 là thiết bị chuyển mạch được quản lý thông minh trên web được thiết kế cho thị trường SMB. Các thiết bị chuyển mạch có thể được triển khai trong các cấu trúc liên kết mạng mục tiêu khác nhau, từ nhỏ đến lớn cũng như các tính năng IPv4 và IPv6. GEL-1051 bao gồm các công nghệ tiết kiệm xanh tốt nhất (IEEE 802.3az và Green-Ethernet). Sử dụng tiêu chuẩn Ethernet tiết kiệm năng lượng, công tắc tự động giảm mức sử dụng điện khi lưu lượng mạng thấp.

Heat dissipation	27.297 (Btu/H)
Approval and compliance	CE FCC classA VCCI BSMI ULCE FCC classA VCCI BSMI ULCE FCC classA VCCI BSMI ULCE FCC classA VCCI BSMI ULCE FCC classA VCCI BSMI ULCE FCC classA VCCI BSMI UL
Max. operating humidity (%)	90
Max. operating temperature (°C)	50
Min. operating humidity (%)	10
Min. operating temperature (°C)	0
Acoustic noise (dB)	0 dB (A)
Backplane (Gbps)	20Gbps
Packet buffer	4.1 Mbits
Button	Reset / Factory Default
Indicators	Power/Link/Active/system
Jumbo frame (KB)	10
MAC address table	8K
RAM size	128MB
Flash memory size	16MB
Mount	19" rack mount
Power supply	AC power
Power switch	No
Processor	MIPS 500MHz
Standards	IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3z 1000BASE-X,Gigabit Ethernet IEEE 802.1p Quality of Service (QoS) IEEE 802.1Q Virtual LANs (VLANs) IEEE 802.1D MAC Bridges IEEE 802.1d Standard Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3z 1000BASE-X,Gigabit Ethernet IEEE 802.1p Quality of Service (QoS) IEEE 802.1Q Virtual LANs (VLANs) IEEE 802.1D MAC Bridges IEEE 802.1d Standard Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3z 1000BASE-X,Gigabit Ethernet IEEE 802.1p Quality of Service (QoS) IEEE 802.1Q Virtual LANs (VLANs) IEEE 802.1D MAC Bridges IEEE 802.1d Standard Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3z 1000BASE-X,Gigabit Ethernet IEEE 802.1p Quality of Service (QoS) IEEE 802.1Q Virtual LANs (VLANs) IEEE 802.1D MAC Bridges IEEE 802.1d Standard Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3z 1000BASE-X,Gigabit Ethernet IEEE 802.1p Quality of Service (QoS) IEEE 802.1Q Virtual LANs (VLANs) IEEE 802.1D MAC Bridges IEEE 802.1d Standard Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3z 1000BASE-X,Gigabit Ethernet IEEE 802.1p Quality of Service (QoS) IEEE 802.1Q Virtual LANs (VLANs) IEEE 802.1D MAC Bridges IEEE 802.1d Standard Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3az Energy-Efficient Ethernet
General features	Quality of Service (QoS): Rate-limiting 8 Priority queues per port Traffic Scheduling : SPQ (Strict Priority Queuing) WRR (Weighted Round Robin) Hybrid Port-Based QoS IPv4/IPv6 DSCP DiffServ HW Queues (8 queues) Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP) Loopback Detection BDPU Filter BDPU Forward Root Guard IPv6 Management: IPv6 over Ethernet (RFC2464) IPv6 Dual Stack (RFC 4213) IPv6 Neighbor Discovery (RFC 4861) IPv6 Address/ Mask/ Gateway IPv6 Ping /Trace IPv6 Telnet IPv6 Syslog IGMP Snooping: IGMP v2/v3 snooping IGMP Filtering/Throttling IGMP Queries IGMP Immediate leave MLD Snooping HTTP/ SNMP over IPv6Quality of Service (QoS): Rate-limiting 8 Priority queues per port Traffic Scheduling : SPQ (Strict Priority Queuing) WRR (Weighted Round Robin) Hybrid Port-Based QoS IPv4/IPv6 DSCP DiffServ HW Queues (8 queues) Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP) Loopback Detection BDPU Filter BDPU Forward Root Guard IPv6 Management: IPv6 over Ethernet (RFC2464) IPv6 Dual Stack (RFC 4213) IPv6 Neighbor Discovery (RFC 4861) IPv6 Address/ Mask/ Gateway IPv6 Ping /Trace IPv6 Telnet IPv6 Syslog IGMP Snooping: IGMP v2/v3 snooping IGMP Filtering/Throttling IGMP Queries IGMP Immediate leave MLD Snooping HTTP/ SNMP over IPv6Quality of Service (QoS): Rate-limiting 8 Priority queues per port Traffic Scheduling : SPQ (Strict Priority Queuing) WRR (Weighted Round Robin) Hybrid Port-Based QoS IPv4/IPv6 DSCP DiffServ HW Queues (8 queues) Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP) Loopback Detection BDPU Filter BDPU Forward Root Guard IPv6 Management: IPv6 over Ethernet (RFC2464) IPv6 Dual Stack (RFC 4213) IPv6 Neighbor Discovery (RFC 4861) IPv6 Address/ Mask/ Gateway IPv6 Ping /Trace IPv6 Telnet IPv6 Syslog IGMP Snooping: IGMP v2/v3 snooping IGMP Filtering/Throttling IGMP Queries IGMP Immediate leave MLD Snooping HTTP/ SNMP over IPv6Quality of Service (QoS): Rate-limiting 8 Priority queues per port Traffic Scheduling : SPQ (Strict Priority Queuing) WRR (Weighted Round Robin) Hybrid Port-Based QoS IPv4/IPv6 DSCP DiffServ HW Queues (8 queues) Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP) Loopback Detection BDPU Filter BDPU Forward Root Guard IPv6 Management: IPv6 over Ethernet (RFC2464) IPv6 Dual Stack (RFC 4213) IPv6 Neighbor Discovery (RFC 4861) IPv6 Address/ Mask/ Gateway IPv6 Ping /Trace IPv6 Telnet IPv6 Syslog IGMP Snooping: IGMP v2/v3 snooping IGMP Filtering/Throttling IGMP Queries IGMP Immediate leave MLD Snooping HTTP/ SNMP over IPv6Quality of Service (QoS): Rate-limiting 8 Priority queues per port Traffic Scheduling : SPQ (Strict Priority Queuing) WRR (Weighted Round Robin) Hybrid Port-Based QoS IPv4/IPv6 DSCP DiffServ HW Queues (8 queues) Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP) Loopback Detection BDPU Filter BDPU Forward Root Guard IPv6 Management: IPv6 over Ethernet (RFC2464) IPv6 Dual Stack (RFC 4213) IPv6 Neighbor Discovery (RFC 4861) IPv6 Address/ Mask/ Gateway IPv6 Ping /Trace IPv6 Telnet IPv6 Syslog IGMP Snooping: IGMP v2/v3 snooping IGMP Filtering/Throttling IGMP Queries IGMP Immediate leave MLD Snooping HTTP/ SNMP over IPv6Quality of Service (QoS): Rate-limiting 8 Priority queues per port Traffic Scheduling : SPQ (Strict Priority Queuing) WRR (Weighted Round Robin) Hybrid Port-Based QoS IPv4/IPv6 DSCP DiffServ HW Queues (8 queues) Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP) Loopback Detection BDPU Filter BDPU Forward Root Guard IPv6 Management: IPv6 over Ethernet (RFC2464) IPv6 Dual Stack (RFC 4213) IPv6 Neighbor Discovery (RFC 4861) IPv6 Address/ Mask/ Gateway IPv6 Ping /Trace IPv6 Telnet IPv6 Syslog IGMP Snooping: IGMP v2/v3 snooping IGMP Filtering/Throttling IGMP Queries IGMP Immediate leave MLD Snooping HTTP/ SNMP over IPv6
Product weight (kg)	0,814
Product breadth (mm)	216
Product depth (mm)	133
Product height (mm)	42
Color	Black
EAN	4015867205006
Model number	GEL-1051
Package contents	GEL-1051, Power Cord, 19" Rack Mount Kit, Resource CD (User Manual, QIG), Quick Installation Guide
Gigabit RJ45	8
Gigabit SFP	2
Switching capacity	20 Gbps
Grade	Business
Data Rate	Gigabit Ethernet
PoE Supported	No
Switch Manageable	Yes
Fanless	Yes
Switch Concurrent ports	10.00 Ports
